DAT Organic Chemistry: Syn and Anti Addition Stereochemistry

DAT High-Yield Concept

Syn Addition: Both new substituents attach to the same face (top or bottom) of a planar $\ce{C=C}$ double bond.
Anti Addition: Substituents attach to opposite faces of the $\ce{C=C}$ double bond.
Bridged Intermediates: Three-membered cyclic ions (e.g., cyclic bromonium ion $\ce{R2Br+}$ ) block one face, forcing nucleophilic attack from the opposite face ( $\text{S}_\text{N}2$ -like backside attack) to give exclusive anti stereochemistry.
Stereospecific Outcomes: Reaction stereochemistry depends directly on starting alkene configuration (*cis* vs. *trans*).

1. Syn vs. Anti Addition and Face Delivery

Alkene addition reactions convert an $\text{sp}^2$ -hybridized carbon-carbon $\pi$ bond with bond angles near $120^\circ$ into $\text{sp}^3$ -hybridized carbons with tetrahedral angles near $109.5^\circ$ . Because the $\pi$ bond is planar, incoming reagents approach from either the top face or bottom face of the molecule.

Key Definition:

Same-Face (Syn) Delivery: Both new single bonds form on the same side of the double bond plane.
Opposite-Face (Anti) Delivery: One new bond forms on the top face and the second forms on the bottom face.

For acyclic or cyclic alkenes, syn addition attaches both atoms with identical wedge/dash stereochemistry (e.g., wedge-wedge or dash-dash). Anti addition attaches one atom as a wedge and the other as a dash.

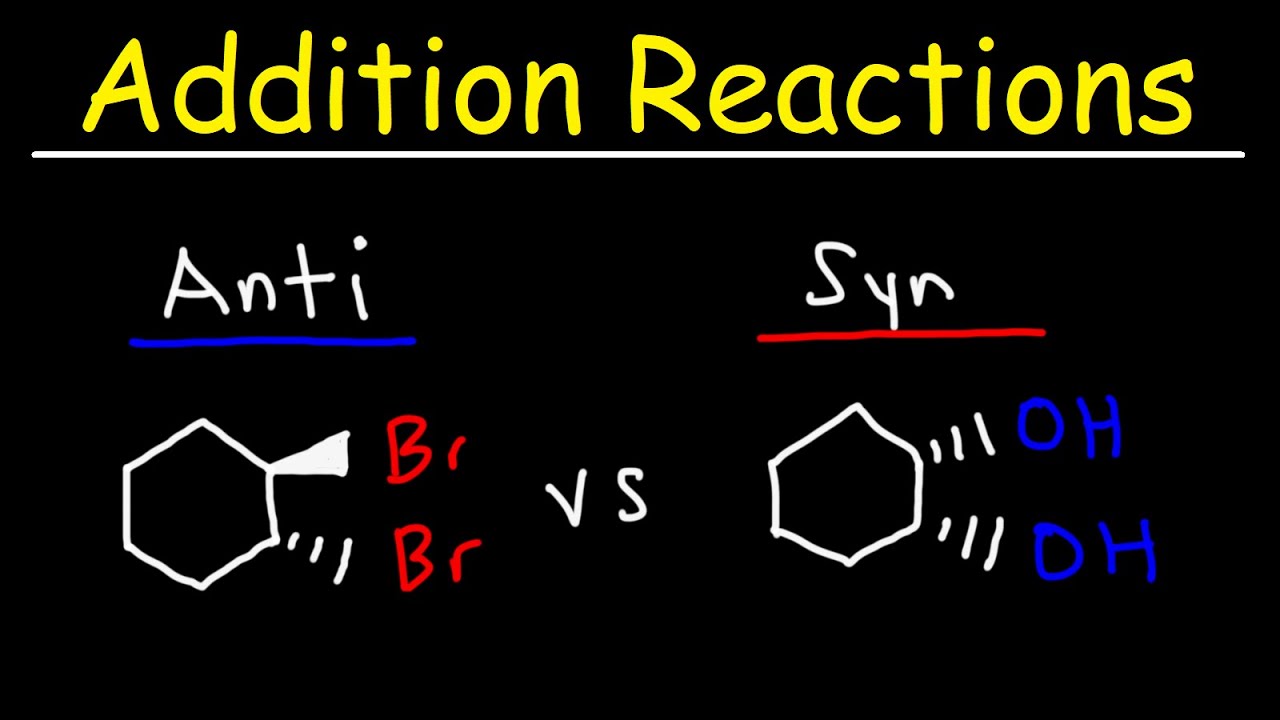

Anti addition and syn addition on the same alkene — Anti addition puts the two new groups on opposite faces: bromine goes through a bridged bromonium ion, so bromide can only attack the face the bridge does not cover, and cyclohexene gives the trans dibromide. Syn addition puts both new groups on the same face: the alkene binds flat to the palladium surface and both hydrogens are handed over from that side. Because both hydrogens arrive on the same face, the two methyl groups end up cis in the product: the syn choice is written into the stereochemistry.

Reagents that deliver both atoms simultaneously or via a solid metal catalyst bed (such as catalytic hydrogenation using $\ce{H2}$ over $\ce{Pd/C}$ ) operate via same-face delivery. Other processes, such as syn dihydroxylation (covered in depth in its own lesson), also demonstrate same-face addition across the alkene $\pi$ system.

File:Syn anti.PNG (Source: Public domain · Wikimedia Commons)

2. Stereochemical Outcomes from Bridged Intermediates

When an alkene reacts with a halogen like $\ce{Br2}$ or $\ce{Cl2}$ , the electrophilic halogen atom forms a three-membered cyclic intermediate known as a halonium ion (e.g., a cyclic bromonium ion $\ce{R2Br+}$ ).

anti -addition of bromine to an alkene (Source: Eschenmoser · Public domain · Wikimedia Commons)

The bridged halonium ion completely shields one face of the original double bond. The remaining halide ion ( $\ce{Br-}$ ) is blocked from attacking that same face and must perform an $\text{S}_\text{N}2$ -like backside attack on the opposite face. This nucleophilic attack inverts the stereocenter at that carbon, producing exclusive anti addition stereochemistry.

DAT Mnemonic for Anti Addition Stereochemistry:
CAR: Cis alkene + Anti addition

\rightarrow

Racemic mixture of enantiomers.
TAM: Trans alkene + Anti addition

\rightarrow

Meso compound.

Intermediate Type	Stereochemical Delivery	Stereospecificity / Outcome
Bridged Intermediate (e.g., Halonium $\ce{R2Br+}$ )	Opposite-Face (Anti)	Stereospecific: cis $\rightarrow$ racemic; trans $\rightarrow$ meso
Syn Transition State / Surface Catalyst (e.g., $\ce{H2}$ , $\ce{Pd/C}$ )	Same-Face (Syn)	Stereospecific: cis $\rightarrow$ meso; trans $\rightarrow$ racemic
Planar Carbocation (e.g., $\ce{H-X}$ addition)	Unselective (Syn + Anti)	Non-stereospecific: yields mixture of diastereomers/enantiomers

3. Worked Example and DAT Exam Traps

Worked Example: Halogenation Stereochemistry

Problem: Predict the stereochemical product(s) when $\ce{cis}$ -2-butene ( $\ce{(2Z)-butene}$ ) reacts with $\ce{Br2}$ in $\ce{CH2Cl2}$ .

Step-by-Step Solution:

Identify the mechanism: Reaction of $\ce{Br2}$ with an alkene forms a cyclic bromonium ion intermediate ( $\ce{R2Br+}$ ).
Determine face delivery: The cyclic intermediate blocks one face. Nucleophilic attack by $\ce{Br-}$ occurs from the opposite face via backside attack, ensuring exclusive anti addition.
Apply stereochemical rules: Electrophilic bromonium formation on the top face followed by bottom-face attack at carbon-2 yields *(2R,3R)*-2,3-dibromobutane. Attack at carbon-3 yields *(2S,3S)*-2,3-dibromobutane.
Final Outcome: A 50:50 racemic mixture of *(2R,3R)* and *(2S,3S)* enantiomers is formed.

Common DAT Exam Trap: Students often assume that a cis starting alkene must produce a meso compound or a cis product. Remember that for anti addition reactions, cis alkenes yield racemic enantiomers, whereas trans alkenes yield meso products!

Critical Thinking Questions

Why does halogenation of cyclohexene yield trans-1,2-dibromocyclohexane rather than the cis stereoisomer?
If an alkene addition reaction proceeds through a free carbocation intermediate rather than a bridged ion, how does the product stereochemistry differ?
How does the symmetry of the starting alkene affect whether anti addition produces a meso compound or a racemic pair of enantiomers?
